What are qBittorrent and GlueTUN?
qBittorrent is a torrent downloader and GlueTUN is the Docker container that has pre-configured VPN connections for numerous VPN providers.
Before you start check the GlueTUN Wiki to see if your provider is on the supported list.
Also, if you are yet to choose a provider have a look at the Reddit list of recommended suppliers as could save you a headache when trying to seed. I currently use AirVPN which has nice easy port forwarding unlike some others. This is my affiliate link if you fancy signing up.
In this guide I will take you through the steps to get qBittorrent up and running in Docker and a separate GlueTUN VPN container. By having a separate container for the VPN connection we can use it in the future for other applications such as Prowlarr, this is useful if you have torrent indexers blocked in your country.
In order for you to successfully use this guide please complete the three preceding guides
- Step 1: Directory Setup Guide
- Step 2: Setting up a restricted Docker user
- Step 3: Setting up a Docker Bridge Network
Let’s start by getting some folders set up for the containers to use. Open up File Station create the following.
/docker/projects/vpnproject-compose /docker/gluetun /docker/qbittorrent
Setting up the TUN start up script
In order for the VPN connection to work we need to make sure the TUN Interface is available to make the connection to a VPN provider. In order to ensure it is available even after a reboot we will set up a small ‘script’.
Open up Control Panel and then click on Task Scheduler
Next click on Create, Triggered Task then User Defined Script.
Enter the following:
On the Task Settings tab copy and paste the code below in the ‘User-Defined script’ section. It will look like screenshot.
#!/bin/sh -e insmod /lib/modules/tun.ko
You can now press OK and agree to the warning message. Next run the script which will enable the TUN device.
You can now move on to the next step.
Wireguard Kernel Module
(Recommended for Performance & Reduced CPU Resource not required for OpenVPN)
The default Gluetun Wireguard setup uses a ‘Userspace’ implementation of Wireguard which requires higher CPU resources. For example a 40MiB download via qBittorrent uses up to 176% in CPU (1.7 Cores) on my 1821+.
By installing the appropriate Kernel Module this reduces down to 1 or 2% which frees up the CPU for other tasks.
BlackVoid.club have put together a Kernel Module for Synology which allows Gluetun to use the lower level Kernel to perform Wireguard duties make sure you drop them a thanks as this would not be possible without them!
While on first glances it looks like a long installation process the page details a number of methods. I recommend having a read taking note of warnings and also if you want to build your own module it tells you how.
The TLDR is below.
- Find your model of NAS under the correct DSM version section (If you are following this guide it will be 7.2) and download the pre compiled .spk file
- Head into Package Manager and click ‘Manual Install’ on the top right and install the .spk file and untick the box to run after install
- SSH Into your NAS (Just like in the User Setup guide) and elevate yourself to root by typing
sudo -iand entering your password
- Enter this command and press enter to start up the module
You should now be able to see the WireGuard package running in Package Manager. Please note while I will try my best to support in relation to this module I may have to refer you on if it is a specific technical issue.
When you have GlueTUN running check the log for this line [wireguard] Using available kernelspace implementation, and you know it is working.
On to the next part.
Next we are going to set up a ‘Project’ in Container Manager, a project is used when you want multiple containers to all be loaded together and often rely on each other to function. In our case we want qBittorrent to load and talk to the GlueTUN VPN container.
Open up Container Manager and click on Project then on the right-hand side click ‘Create’
In the next screen we will set up our General Settings, enter the following:
Next we are going to drop in our docker compose configuration copy all the code in the box below and paste it into line ‘1’ just like the screenshot
services: gluetun: image: qmcgaw/gluetun:latest container_name: gluetun cap_add: - NET_ADMIN devices: - /dev/net/tun:/dev/net/tun ports: - 8888:8888/tcp # HTTP proxy - 8388:8388/tcp # Shadowsocks - 8388:8388/udp # Shadowsocks - 8090:8090 # port for qbittorrent volumes: - /volume1/docker/gluetun:/gluetun environment: - PUID=1234 #CHANGE_TO_YOUR_UID - PGID=65432 #CHANGE_TO_YOUR_GID - TZ=Europe/London #CHANGE_TO_YOUR_TZ - VPN_SERVICE_PROVIDER=NAMEOFYOURPROVIDER - VPN_TYPE=openvpn - OPENVPN_USER=VPNUSERNAME - OPENVPN_PASSWORD=VPNPASSWORD - SERVER_COUNTRIES=VPNSERVERCOUNTRY - HTTPPROXY=off #change to on if you wish to enable - SHADOWSOCKS=off #change to on if you wish to enable - FIREWALL_OUTBOUND_SUBNETS=172.20.0.0/16,192.168.0.0/24 #change this in line with your subnet see note on guide. # - FIREWALL_VPN_INPUT_PORTS=12345 #uncomment this line and change the port as per the note on the guide network_mode: synobridge labels: - com.centurylinklabs.watchtower.enable=false security_opt: - no-new-privileges:true restart: always qbittorrent: image: linuxserver/qbittorrent:latest container_name: qbittorrent environment: - PUID=1234 #CHANGE_TO_YOUR_UID - PGID=65432 #CHANGE_TO_YOUR_GID - TZ=Europe/London #CHANGE_TO_YOUR_TZ - WEBUI_PORT=8090 - UMASK=022 volumes: - /volume1/docker/qbittorrent:/config - /volume1/data/torrents:/data/torrents network_mode: service:gluetun # run on the vpn network depends_on: gluetun: condition: service_healthy security_opt: - no-new-privileges:true restart: always
What is a Docker Compose?!
The code we just dropped into Container Manager defines how we want each of the container’s setup. It is broken down into sections such as ports we want to access, which folders we want the container to use and what some variables to define where we live and settings for the container known as ‘Environment’ variables.
We will now make some important edits!
IDs and Timezone
First look for the lines below, they appear twice each, these control the containers access to our filesystem and also the user the containers run as.
|PUID||(required) The UID you obtained in the user setup guide|
|PGID||(required) The GID you obtained in the user setup guide|
|TZ||(required) Your timezone wikipedia.org/wiki/List_of_tz_database_time_zones|
Ports and Proxies
In the top Gluetun section you will notice that we have some additional ports assigned for a http proxy and Shadowsocks Proxy – this means you can direct traffic from other devices or applications on your network through the container! If you want to use these change the following.
|HTTPPROXY||off (default) on (enabled)|
|SHADOWSOCKS||off (default) on (enabled)|
Firewall Outbound Subnet
This section controls your ability to access the UIs of any containers running through the GlueTUN containers network.
The first part ‘172.20.0.0/16’ don’t edit as this is our ‘synobridge’ network and allows other containers such as Radarr to access the download client.
We need to change the second IP after the , this allows us to access the WebUI and containers via out local network.
This IP address (subnet) is easy to figure out. If you NAS IP is 192.168.0.27 your subnet is 192.168.0.0/24 (notice I just changed the last number before the /24 to 0)
Firewall Input Ports
This part is # commented out by default, if your VPN provider offers port forwarding remove the # from the start of the line and change the port number(s) in line with the ones provided to you. This will also be the port used within the download client and will help overall connectivity.
By default, I have assumed you have your config files stored on /volume1 if these are located on another volume amend these lines accordingly.
- /volume1/docker/gluetun:/gluetun - /volume1/docker/qbittorrent:/config - /volume1/data/torrents:/data/torrents
Important – Provider Specific Edits
This next bit is important and if you don’t pay attention to the details you will have a harder time connecting up to your VPN provider
Open up the GlueTun Wiki and in the list find your provider.
Lets use NordVPN as our example.

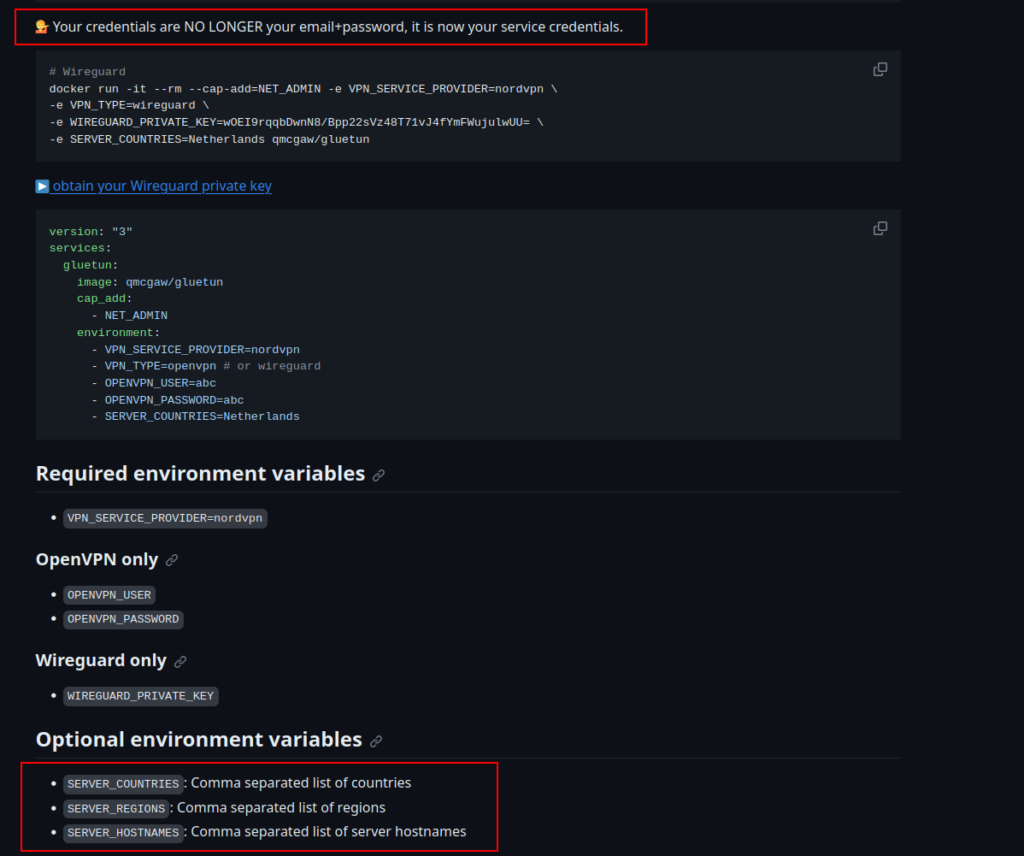

On the page you will see a number of key sections highlighting the variables that work with Nord. This is important as they can vary per provider so read everything on your providers page.
I have provided some common defaults in the compose for you but you need to amend them in line with your providers page.
- VPN_SERVICE_PROVIDER=NAMEOFYOURPROVIDER - VPN_TYPE=openvpn - OPENVPN_USER=VPNUSERNAME - OPENVPN_PASSWORD=VPNPASSWORD - SERVER_COUNTRIES=VPNSERVERCOUNTRY
Once you have checked for your provider, make the appropriate edits to the compose accordingly.
That completes the edits to the compose!
You do not need to enable anything on the ‘Web portal settings’ screen click ‘Next’ again
On the final screen click Done which will begin the download of the container images and once downloaded they will be launched!
The images will now be downloaded and extracted. You should see ‘Code 0’ when it has finished.
You will now see your vpn-project running both containers should have a green status on the left-hand side.
(Skip if you don’t have the Firewall configured)
If you have enabled and configured the Synology Firewall you will need to create exceptions for any containers that have a Web UI or have any incoming or outgoing connections. This section covers the basics of how to add these. (Please note this is a generic section and will not show the specific ports in this guide however it applies in the same way)
Head into the
Firewall, from here click
Edit Rules for the profile you set up when you enabled the Firewall.
Next click on
Create and you will see the screen below. Source IP and Action will be automatically selected to All and Allow, I will leave it up to you as to your own preference on whether you want to lock down specific Source IPs from having access. In this example we will leave as All.
You will now choose ‘Select from a list of built-in applications‘ and then the
Now from the list choose the newly created Docker container (You can do more than one if you wish)
Click OK a couple of times to get back to the main screen. You will see by default the new rule is added to the bottom of the list. You must always have your Block All rule last in the list as the rules are applied top down so move your container up.
You have now completed the Firewall changes and can continue with the guide.
Changing the default WebUI login and password
If you skip this step you won’t be able to log in.
Now the container has started open it in the Docker UI and go to the Log tab. Within the logs you will see the login details
Now before doing any more of the guide go to the Web UI by going to the IP of your NAS followed by port 8090 and log in. Then on the WebUI tab change the defaults to your own and save them.
Now continue on..
Final qBittorrent Setup
As we have used /data/torrents as the mount point for our downloads we need to make sure qBittorrent uses this same file path.
We need to change the file paths by editing the qBittorrent config file, before doing this stop both of the containers. Do this by selecting the Project from the main UI and under Action selecting ‘Stop’.
You can edit this file in a number of ways, but to keep the guide OS-agnostic we will be using the Synology Text Editor package which can be installed via Package Center.
Open Text Editor and browse to /docker/qbittorrent/qbittorrent and open the qBittorrent.conf then edit the file in line with the table below, once amended save the changes.
|Original Value||New Value|
You can now bring the containers back up again by starting the project back up.
Once the containers are running you can log into the Web UI by going to the IP of your NAS followed by port 8090
Log in with the username and password you created earlier.
Now you are in the UI click on settings cog at the top of the screen, we are going to change one more directory which is the watched folder to /data/torrents/watch. You can also turn on the option ‘keep incomplete torrents in:’ which should already have /data/torrents/incoming’ prefilled.
Next we are going to set a command to run when each torrent finishes to automatically extract any .rar files (Note if you have any issues with this I would recommend using Unpackerr the guide is on the menu)
Scroll down in the options to the ‘Run external program on torrent completion’ and enter the below, it tells qbittorrent to run unrar and extract the file to the same save path as the original file. This will not delete anything, so you can continue seeding.
unrar x "%D/*.r*" "%D/"
Advanced Network Settings
The last step is to tell qBittorrent to only use the tun0 interface for its traffic, go to the Advanced tab then from the ‘Network Interfaces’ drop down select ‘tun0’ and click Apply, If this doesn’t appear the first time you may need to completely reboot your NAS.
I am not going to walk through all the other settings as you can customise these as you wish.
That’s it you are completely set up, you can now Start up the Project again from the ‘Project’ tab.
I recommend having a quick read through the FAQ as it covers some questions you may have!
Q: How can I update the GlueTUN containers?
A: See the Updating Containers section on the menu.
Q: How can I be sure the VPN connection is working?
A: Go to the TorGuard Check My Torrent IP site, right-click on the Green banner and copy the link (it’s a Magnet link) Then add this link into qBittorrent and start the torrent. Keeping the site open after a few seconds the site will show the IP address of the connection it finds. This will be of the VPN provider not your home IP. (Please note the torrent doesn’t actually download anything it’s purely doing an IP check)
Q: Everything seems to be connected but nothing is downloading.
Are you using TorGuard – If so they block torrents on their US servers. Change to another country – Also while you are at it, you may need to configure port forwarding in your TorGuard account.
Try grabbing the Ubuntu torrent as that is a sure fire way of testing as generally it has over 3k seeds.
Q: My container doesn’t seem to start on a reboot even with the TUN script.
A: I have seen this a few times and usually relates to the VPN not completing its connection fast enough before containers using the VPN start. You can try setting an additional startup script by doing the following.
Head into Control Panel and go to Task Scheduler Click Create > Triggered Task > User Defined Task
|Pre Task||Select the VPNTUN script from the drop-down that you created at the start of the guide|
In the ‘Task Settings’ tab enter the following and then click Save
sleep 120 docker-compose -f /volume1/docker/projects/vpnproject/compose.yaml down wait docker-compose -f /volume1/docker/projects/vpnproject/compose.yaml up -d
Proton VPN Port Forwarding Extra Step
Proton doesn’t allow you to choose your own port for port forwarding, so we need to add another container to the compose in order for this to be automatically updated for us. (Please note I am unable to test this personally it is based on Feedback via our Discord channel)
First don’t uncomment this line in the compose leave it disabled
# - FIREWALL_VPN_INPUT_PORTS=12345
Next copy the code below to bottom of the compose file and then amend the following only leave the other options.
TZ= #ENTER YOUR TIMEZONE
QBITTORRENT_SERVER= NAS IP or 172.20.0.1
QBITTORRENT_USER=admin (change to the username you will be using later for qbit)
QBITTORRENT_PASS=adminadmin (change to the password you will be using later for qbit)
Once added continue with the guide 🙂
qbittorrent-natmap: # https://github.com/soxfor/qbittorrent-natmap image: ghcr.io/soxfor/qbittorrent-natmap:latest container_name: qbittorrent-natmap restart: always volumes: - /var/run/docker.sock:/var/run/docker.sock:ro environment: - TZ=Europe/London #CHANGE_TO_YOUR_TZ - QBITTORRENT_SERVER= #NAS IP or 172.20.0.1 - QBITTORRENT_PORT=8090 - QBITTORRENT_USER=admin - QBITTORRENT_PASS=adminadmin # - VPN_GATEWAY= # - VPN_CT_NAME=gluetun # - VPN_IF_NAME=tun0 # - CHECK_INTERVAL=300 # - NAT_LEASE_LIFETIME=300 network_mode: service:gluetun depends_on: qbittorrent: condition: service_started gluetun: condition: service_healthy security_opt: - no-new-privileges:true
Q: How can I add additional services to the VPN container?
A: Adding additional containers to the VPN network is very easy. As you can see in the example below I have added Prowlarr to the bottom of the compose. The only amendments are that the ‘network_mode’ uses the Gluetun container and the ports for Prowlarr have been moved up to the Gluetun containers ports section.
Also see the separate Prowlarr guide on the left menu for setting up FlareSolver (In the Extras section)
- 9696:9696 # add this to the ports section of GlueTUN #add the below to the bottom of the compose linuxserver-prowlarr: image: linuxserver/prowlarr:latest container_name: prowlarr environment: - PUID=1234 #CHANGE_TO_YOUR_UID - PGID=65432 #CHANGE_TO_YOUR_GID - TZ=Europe/London #CHANGE_TO_YOUR_TZ - UMASK=022 volumes: - /volume1/docker/prowlarr:/config network_mode: service:gluetun # run on the vpn network depends_on: gluetun: condition: service_healthy security_opt: - no-new-privileges:true restart: always
More will be added as questions come up
